GEAR BOXES, GEAR SPINDLES, UNIVERSAL SHAFTS FOR FINISHING MILLS AND ROUGHING MILLS

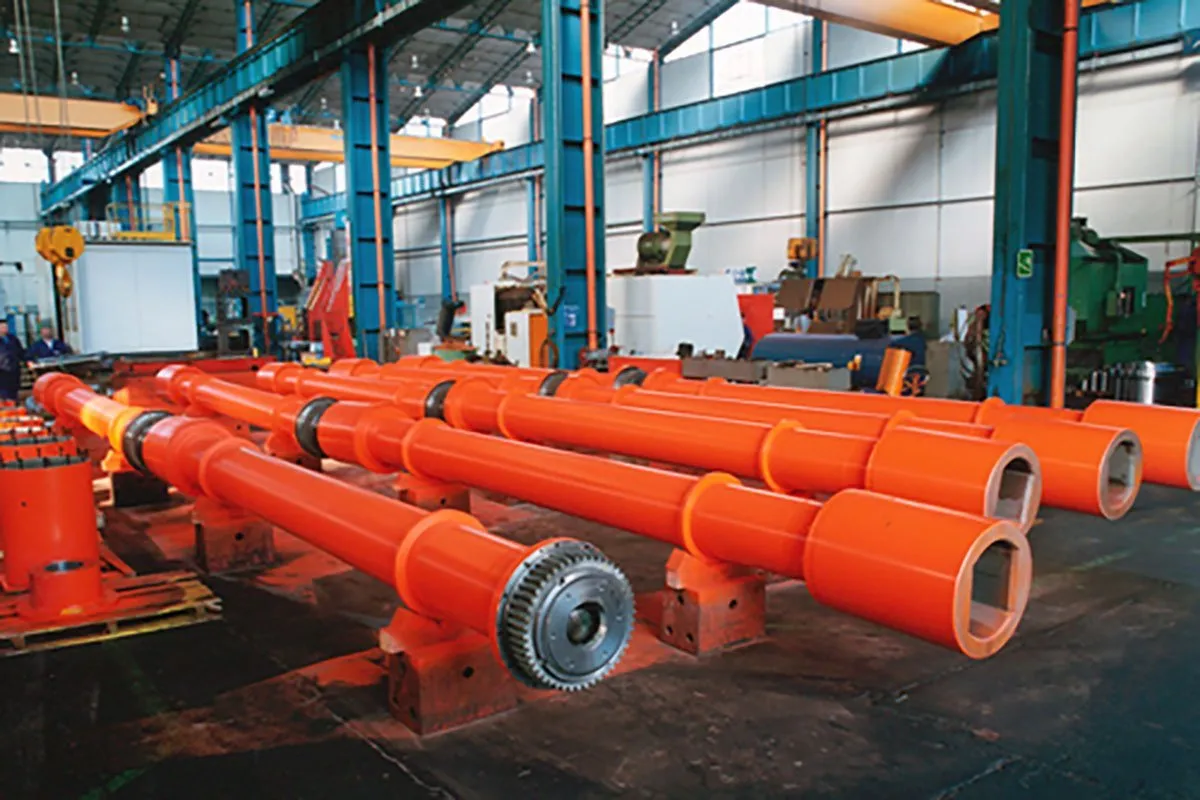

Gear Spindles
Modern steel and nonferrous mills demand high-performance power transmission equipment capable of handling higher loads and speeds. Rolling mill spindle couplings are critical components that ensure maximum productivity and high-quality output.
Gear Spindle Coupling Requirements
- High torque capacity in limited space conditions
- Ability to endure high instantaneous peak loads caused by material entry or rolling disturbances
- Capable of transmitting maximum torque with angular misalignment of 3” or more
- Customizable design to match client needs
- Built for long-term use under extreme working conditions
Gear Tooth Materials & Heat Treatments Any gear spindle coupling component, operating for the torque transmission, is manufactured from special alloy steel and is head treated. The section of a proper combination of steel and heat treatment, depending on the stressing level and the required operating life, can be:
Each coupling component is made from special alloy steel and treated for optimal hardness and wear resistance:
- TYPE A – X38CrMo V51 SGNG: Core hardened, heavy-duty nitriding, surface hardness >1100 Hv
- TYPE B – 18 NiCrMo5 CHG: Case hardened, surface hardness >625 Hv
- TYPE C – 31CrMo12 SGN: Hardened, gas nitriding for deep hardness, surface hardness >750 Hv
- TYPE D – 42CrMo4 NGN: Hardened, normal gas nitriding, surface hardness >550 Hv
- TYPE E – 42CrMo4 IHT: Hardened, full contour induction hardening, surface hardness >550 Hv
Gear Couplings :
We offer nitroxidation (N.O.) treatment on our standard GO-A gear couplings made of AISI 1045, upon request. This treatment not only limits surface corrosion but also enhances surface hardness and wear resistance, significantly increasing the service life of gear teeth, even under high misalignment and rotational speeds.
Unless otherwise specified, our gear couplings are carefully packaged based on their dimensions, weight, and required transport/storage conditions. To prevent oxidation, interface surfaces are typically protected with a wax coating of TECTYL 506 EH. The raw or semi-finished surfaces of spacer tubes are sandblasted, primed with an acrylic coat, and finished with two layers of epoxy, capable of withstanding temperatures up to 100–120°C.
We can also apply custom coatings on demand to meet specific operational requirements. The torque capacity and maximum operating speed of a gear coupling depend on the total shaft misalignment during installation.
Proper selection of gear couplings should consider operating data including load, speed, application type, nominal and maximum load capacity, nominal speed, static and dynamic misalignments, and the maximum permissible bore. We supply a wide range of gear couplings, spacer couplings, floating shaft couplings, and fully customized couplings to meet precise customer specifications and operational requirements.
Universal Shafts :
Our universal shafts product line includes 26 sizes, designed according to dimensions and intended applications. The standard series covers rotations from 180 mm up to 620 mm, suitable for general industrial use, while the tunnel series, also ranging from 180 mm to 620 mm, is ideal for confined or specialized spaces. The heavy-duty series accommodates rotations up to 1300 mm, built for maximum load and durability. Additionally, the HISHAFT® transmissions series is strengthened for standard rotations, offering enhanced performance, increased torque handling, and extended bearing life.

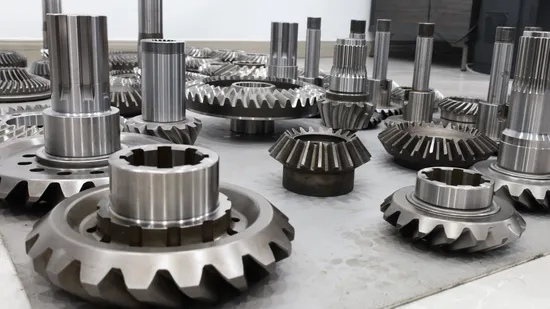

Gear boxes :
We supply customized gearboxes and gears, offering complete packages that include a wide range of complementary components to meet diverse industrial needs. Our company specializes in high-performance industrial gearboxes and gears, serving a broad spectrum of sectors including rubber and plastics, steel and aluminium, sugar, test benches, mining and cement, as well as lifting and conveying applications. As trusted industrial gearbox manufacturers, we ensure quality, reliability, and tailored solutions for every client requirement.
